Thermoplastic honeycomb White

Thermoplastic honeycomb core material is an innovative structural composite engineered from polymers such as PP, PC, and PET using biomimetic honeycomb principles. It exhibits outstanding properties including high strength-to-weight ratio, environmental sustainability, water resistance, and corrosion resistance. Compatible with diverse facing materials—such as fiberglass panels, FRP, wood-grained sheets, aluminum, stainless steel, marble, and rubber plates—it serves as a high-performance alternative to conventional materials. Its applications span extensively across industries including freight vehicles, high-speed railways, aerospace, marine crafts, interior design, and modular architecture.

yingtao285@gmail.com +86 15876533932

Product Details

Images

Specification

Material	Polypropylene+fiberglass
Color	Natural
Thickness	Customized 6-50mm
Cell diameter	Customized 6-12mm
Length	1-6m
Width	0-1.6m
Core Density	100kg/㎥(Customized : 70-140kg/㎥)

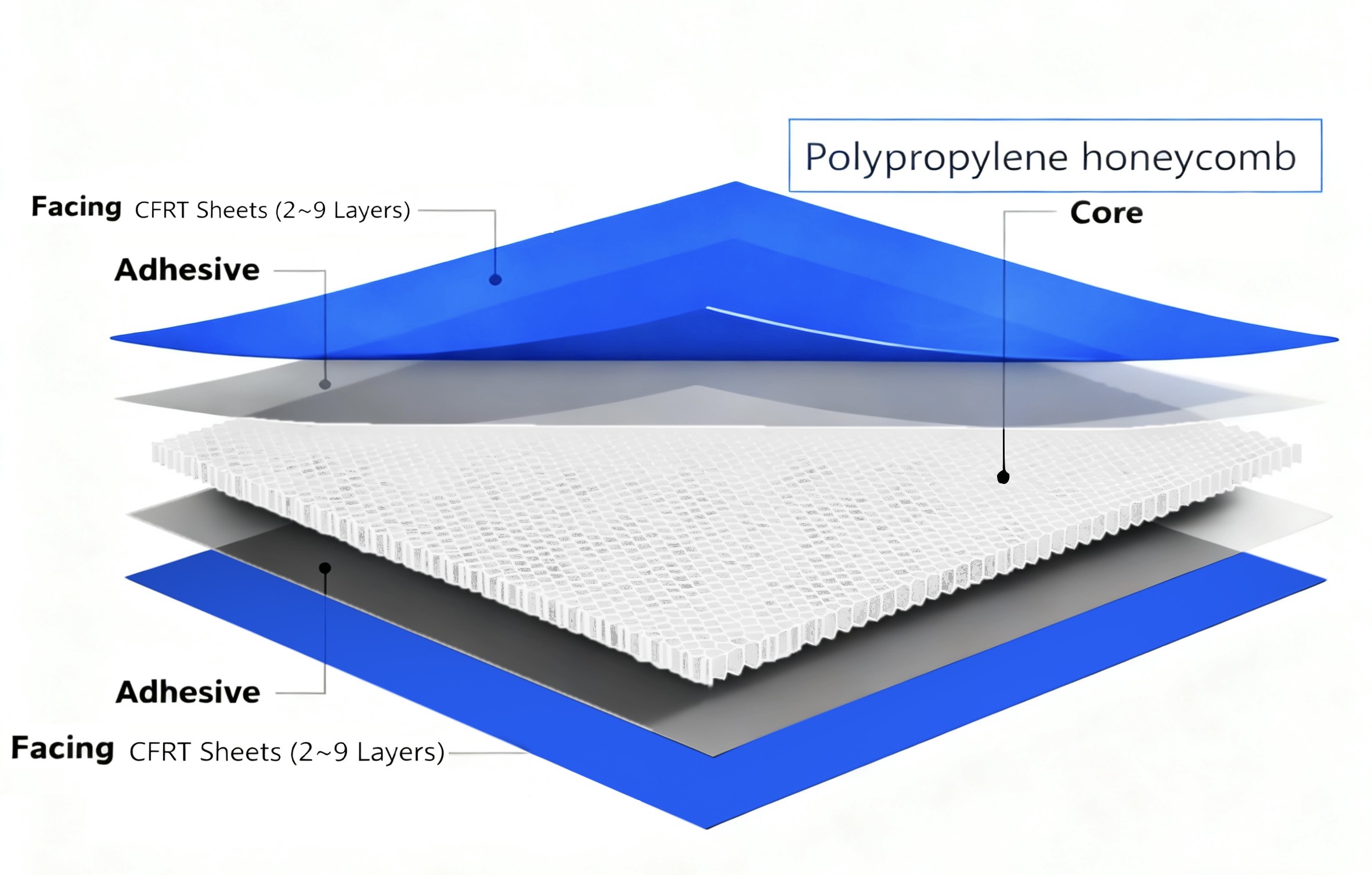

原色玻纤蜂窝三明治结构图

Facing-CFRT Sheets

CFRT表皮组成

CFRT (Continuous Fiber Reinforced Thermoplastic) is a high-performance composite material. It is composed of continuous unidirectional fibers (such as glass or carbon fiber) and a thermoplastic matrix (e.g., PP, PA, PPS) combined via a specialized impregnation process. It retains the high strength and modulus of the reinforcing fibers while incorporating the high toughness and recyclability of the thermoplastic polymer. Thanks to its continuous fiber structure and thorough resin impregnation, CFRT exhibits far superior mechanical properties to discontinuous fiber composites like GMT and LFT. It is typically supplied as a prepreg tape and can be processed using rapid hot-pressing techniques, finding broad applications in automotive, transportation, and sports equipment industries.

Core-Polypropylene honeycomb

通孔蜂窝芯

The PP honeycomb core is fundamental to the sandwich structure, leveraging a combination of the polypropylene material's properties and the honeycomb geometry. This results in a lightweight, high-strength core with outstanding impact resistance, energy absorption, sound and thermal insulation, chemical resistance, moisture protection, and vibration damping capabilities.

Physical properties of thermoplastic honeycomb panels

Thickness	10mm	12mm	15mm	18mm	20mm
Core Density（kg/㎥）	100	100	100	100	100
Surface Density (kg/m²)	2.88	3.08	3.38	3.68	3.88
Flexural Strength (MPa)	25 - 35	35 - 50	50 - 70	65 - 90	75 - 105
Elastic Modulus (Flexural) (MPa)	1300 - 2200	1800 - 3000	2800 - 4500	3800 - 6000	4500 - 7000
Compressive Strength (Flatwise)(MPa)	2.0 - 3.5	2.0 - 3.5	1.8 - 3.2	1.6 - 2.8	1.5 - 2.6
Thermal Conductivity (W/(m·K))	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12	0.09 - 0.12

Core Advantages of PP Thermoplastic Honeycomb

Ultimate Light weighting

Extremely low density for significant weight reduction.

High Strength & Stiffness

Exceptional strength-to-weight and stiffness-to-weight ratios; performance rivals metal when composited.

Superior Impact Resistance

Excellent toughness and energy absorption; deforms to absorb impact rather than fracturing.

Fully Recyclable

100% thermoplastic, allowing for repeated reprocessing and full alignment with circular economy goals.

Easy Processing

Can be thermoformed into complex shapes, and is easy to cut and join, offering high design freedom.

Chemical & Thermal Insulation

Resistant to chemicals and moisture, with good sound and thermal insulation properties.

Comparative advantages with different panels

Thermoplastic Honeycomb vs. Other Panels
vs. Steel	vs. Plywood	vs. FRP/Foam
Lighter	Lighter & easy to assemble	Lighter
Easy assembly	Impact resistant	Easy assembly
Impact resistant	Waterproof & fire retardant	Impact resistant
Non-rusting	Durable (fiber-reinforced)	Waterproof
Food-safe	Repairable	Delamination-proof
Repairable	Food-safe	Recyclable
Thermal insulation	Eco-friendly & recyclable	Repairable
	Oil-resistant	Long life
Long life	Long life	Prone to delamination
