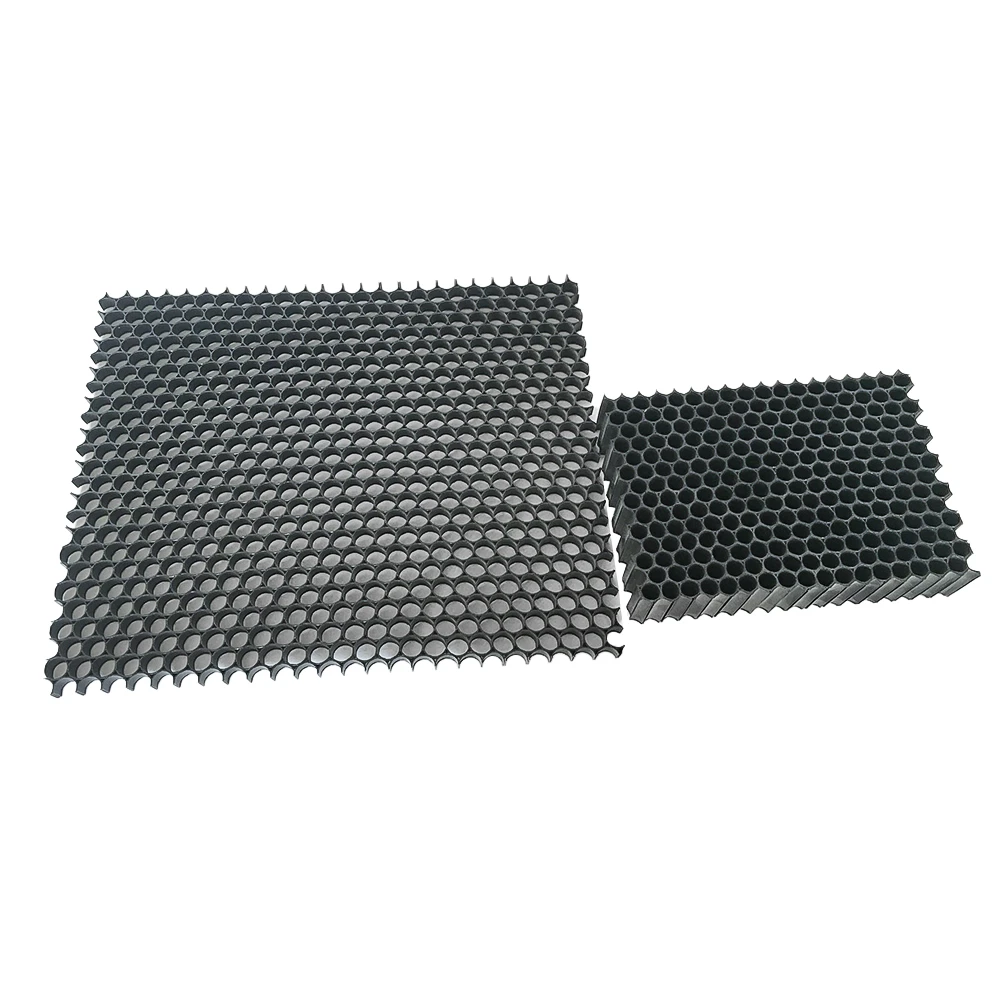

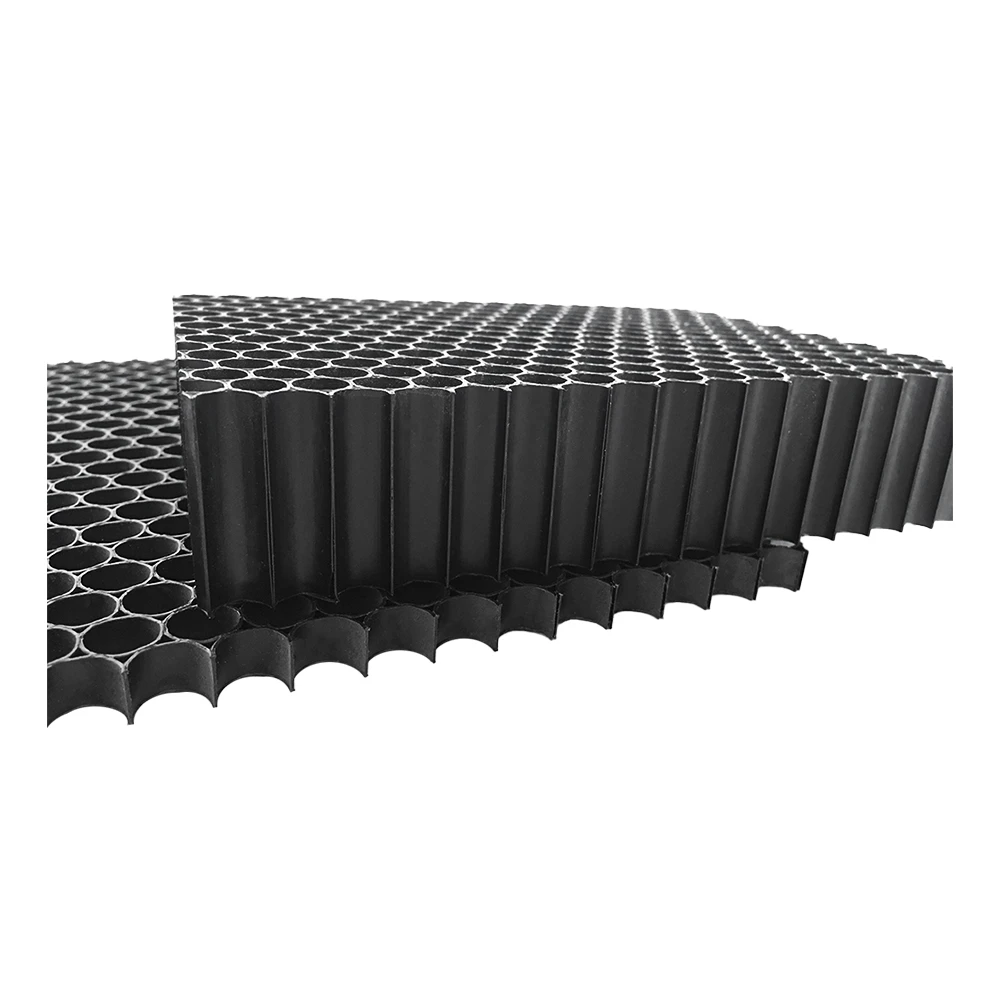

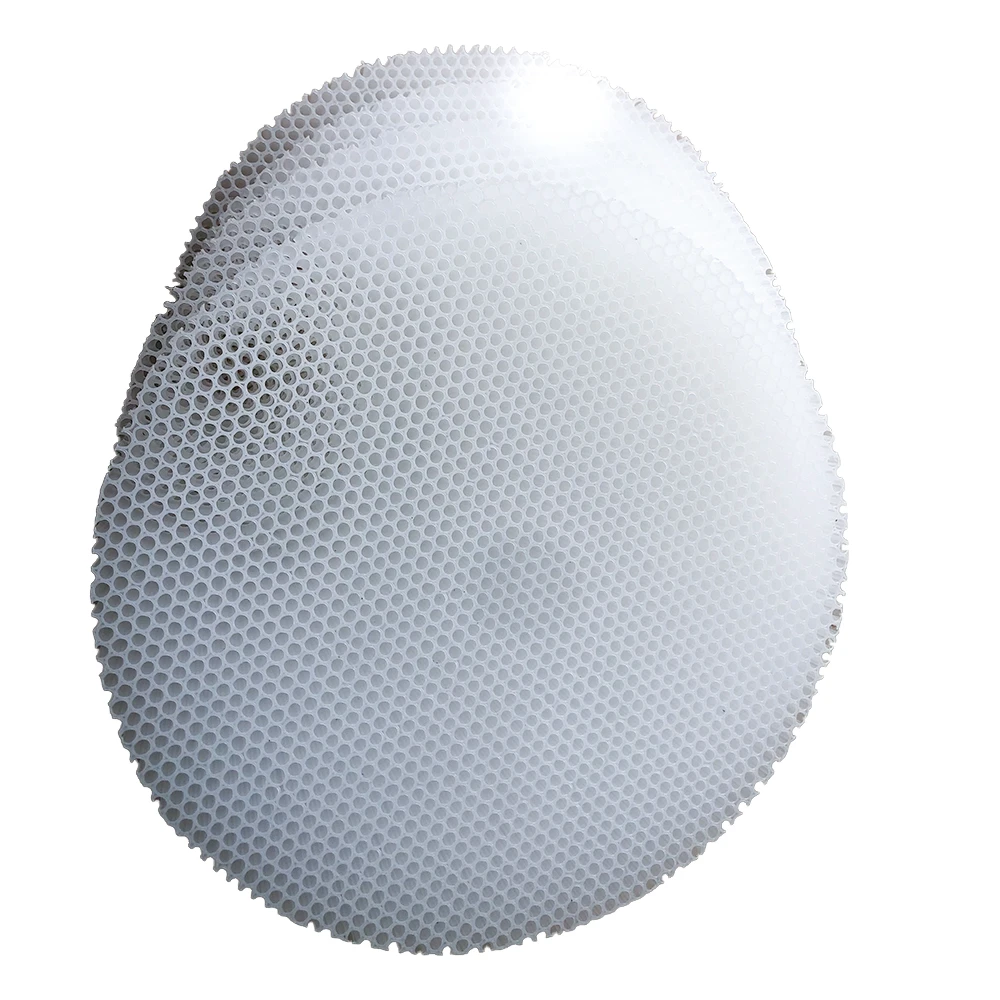

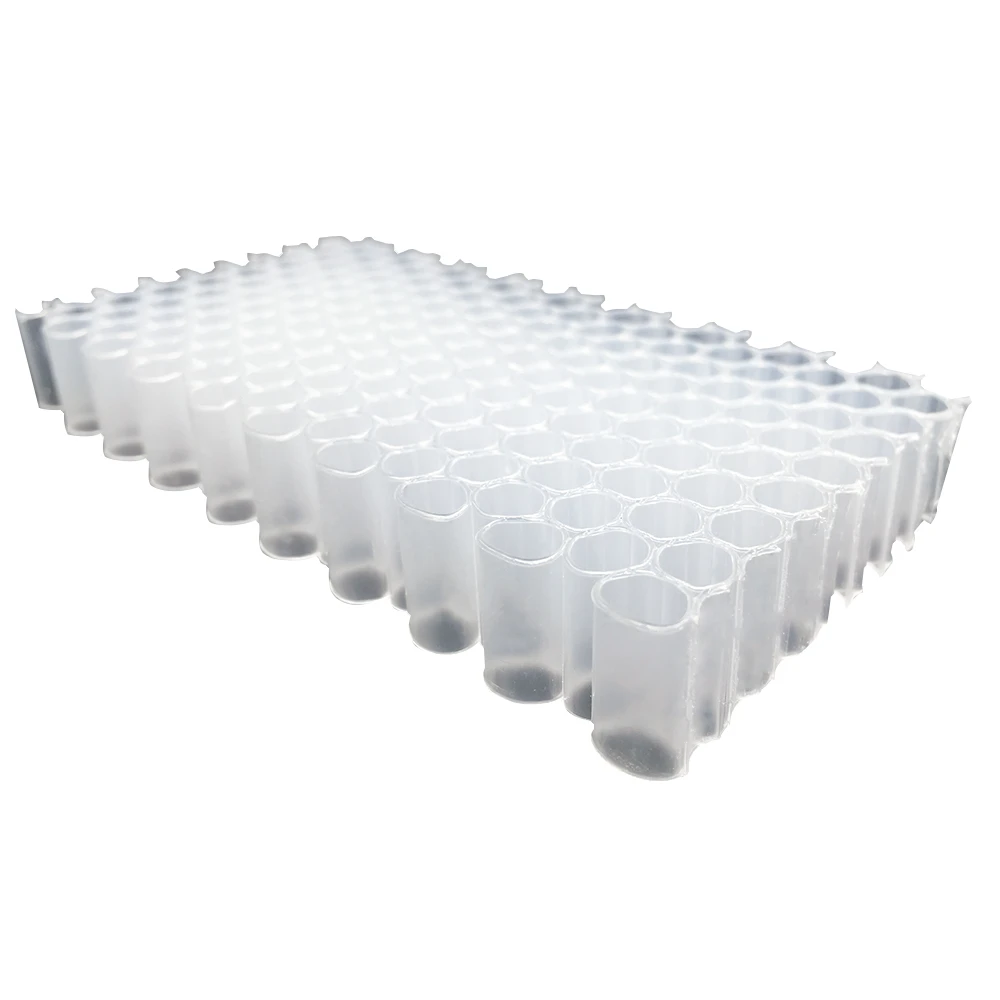

PP through hole honeycomb

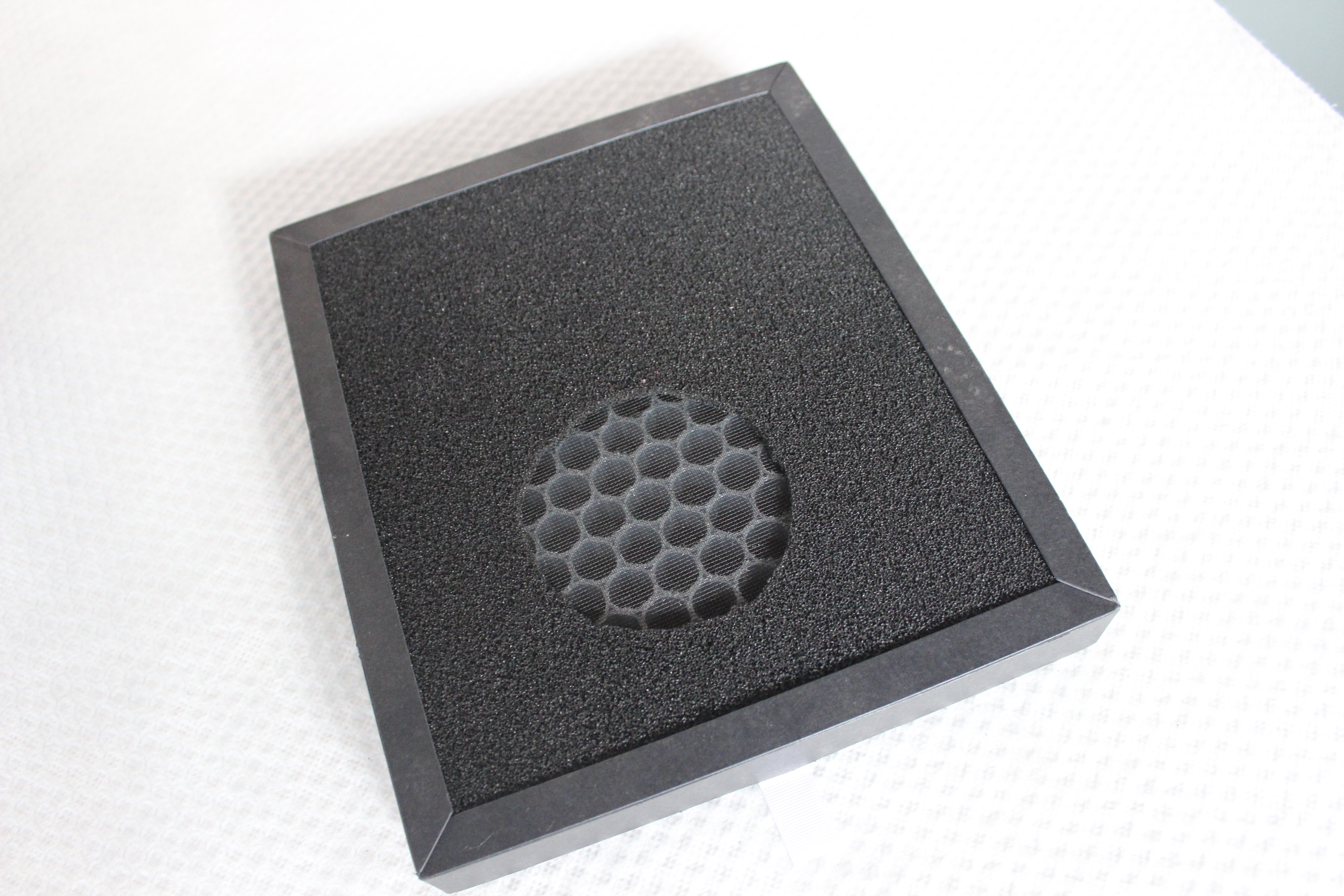

PP honeycomb panel, with its many advantages such as light weight, high strength, and great rigidity, has been widely used in architectural fields including exterior wall decoration, indoor feature walls, and flooring. PP honeycomb is a three-dimensional structure offering good stability and balance. Thanks to its excellent permeability, waterproof and moisture-resistant properties, aesthetic appeal, resistance to deformation, and non-toxicity, it can be used for gas flow guidance and fountain construction. When combined with activated carbon, it can also be applied in air filtration and purification equipment.

yingtao285@gmail.com +86 15876533932

Product Details

Images

PP honeycomb panel is lightweight, with a weight only one-fifth that of aluminum panels and one-tenth that of steel panels under the same rigidity. It is not prone to deformation, completely overcoming the shortcomings of other decorative panels that are susceptible to warping and collapsing. PP honeycomb panel is easy to process and install, as it can be arbitrarily cut and folded, and it exhibits good adhesion and weather resistance. It is recognized by construction professionals worldwide as an excellent material.

Specification

Color	White
Thickness	4-160mm
Cell Diameter	6-12mm
Size	1220*2440mm, or customized
Density	80kg/㎥(Customized: 70-140kg/㎥)

Physical Properties

Model	Model A	Model B
Color	White	White
Cell Diameter (mm)	8	12
Density (Kg/m³)	80-140	70-120
Compressive Strength （MPa）	1.6-3.0	1.4-2.8
Shear Strength (MPa)	0.5-0.8	0.4-0.7
Effective Temperature(℃)	-40——+120	-40——+120
Thermal Conductivity (w/mk10℃)	0.102	0.102

Features
1.Low Density:The honeycomb structure is a porous and discontinuous material, with a very small cross-sectional area of the solid part. As a result, the density of the honeycomb is very low, and its overall lightweight nature meets the weight reduction requirements in aerospace design.
2.Excellent insulation:Honeycomb panels contain just 1–3% solid material, with the rest being sealed air. This structure effectively blocks heat transfer and sound transmission, delivering exceptional thermal and acoustic performance.
3.Excellent Vibration Damping:The densely arranged honeycomb cells function like miniature I-beams, mutually constraining and dispersing incoming pressure from multiple directions. This unique structural mechanism effectively absorbs and dampens vibrations.
4.Exceptional Flatness and Rigidity:The honeycomb core, composed of numerous fixed and non-shifting cells under vertical loading, effectively distributes multidirectional pressure. This results in uniform stress distribution, high load-bearing capacity, and outstanding surface flatness even across large spans.

Application:
